Features of the CONTOUR CHECK SHAPE

Quality control

Only quality material which meets your specifications leaves the factory, giving you full process control and increased efficiency.

Rolling defects recognition

The system automatically detects and classifies rolling errors so that the operator can make optimum adjustments to the rollers.

Surface defect detection

The evaluation of the surface quality enables the classification of the severity of the defects, marks the specific clusters and, if necessary, adjusts the material.

Software SMART CORE PRO

The software offers the unique functionality of virtually rotating a rotating and vibrating round profile into alignment of the rolling mill to directly measure the real rolling defect. You can also configure the user interface individually. Learn more!

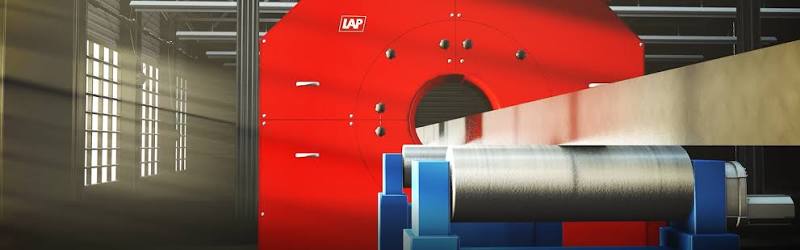

Visualizes dimensions of round, square and hexagonal steel sections during the rolling process and shows deviations in real time.

Technical data

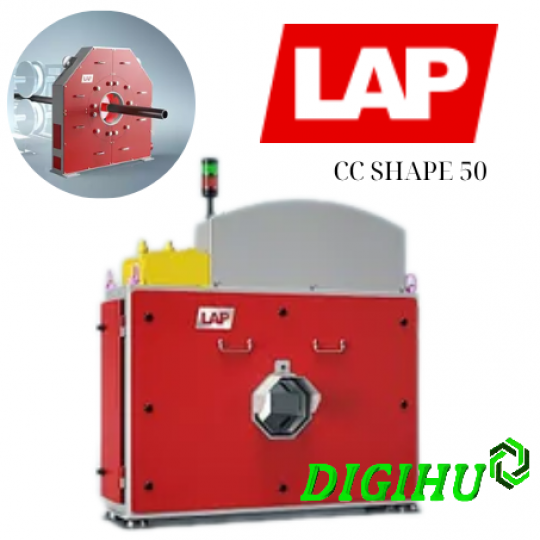

	CC SHAPE 50	CC SHAPE 100	CC SHAPE 150	CC SHAPE 250	CC SHAPE 500
Measuring range	50 mm	100 mm	150 mm	250 mm	500 mm
Accuracy (trueness)	± 0,015 mm	±0,025 mm	±0,040 mm	±0,065 mm	±0,100 mm
Repeatability (precision)	0,003 mm	0,006 mm	0,009 mm	0,015 mm	0,030 mm
Number of cameras	4	4	4	4	4
Frame width	1270 mm	1270 mm	1470 mm	1770 mm	2400 mm
Frame height	1280 mm	1480 mm	1680 mm	2170 mm	2590 mm
Frame depth	370 mm	470 mm	550 mm	640 mm	745 mm
Passline height	450 mm	540 mm	640 mm	780 mm	890 mm
Frame weight	355 kg	435 kg	585 kg	895 kg	1370 kg
Positioning system	Yes	Yes	Yes	Yes	Yes
Blower	Yes	Yes	Yes	Yes	Yes
Air and water cooling unit	Yes	Yes	Yes	Yes	Yes
Pyrometer	Optional	Optional	Optional	Optional	Optional
