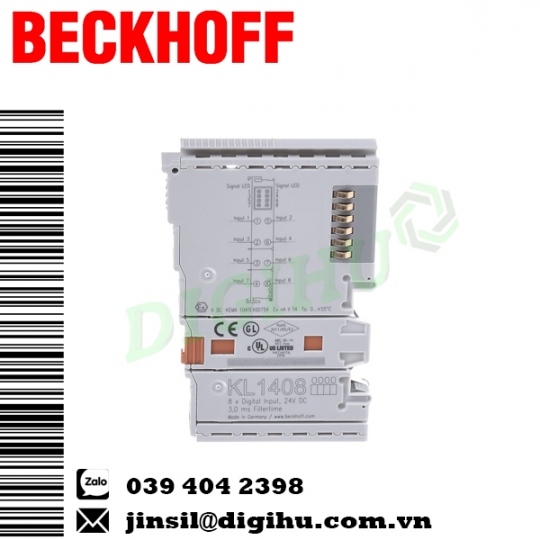

KL1408 Beckhoff,8-channel digital input terminal 24 V DC

Mã sản phẩm:
KL1408 Beckhoff
Lượt xem:
339
Giá:
Liên hệ
Màu sắc:
Kích thước:
Số lượng:

- +

Thêm vào giỏ hàng Đặt hàng

LIÊN HỆ VÀ BÁO GIÁ CHI TIẾT

SALE DIGIHU VIETNAM

Mail: jinsil@digihu.com.vn

Trực tiếp Zalo: 039 404 2398

Thông tin sản phẩm
Bình luận

Nhà phân phối Beckhoff Vietnam, KL1408 Beckhoff,8-channel digital input terminal 24 V DC- Beckhoff Vietnam

KL1408 - 8-channel digital input terminal 24 V DC, IEC 61131-2, type 3, filter 3.0 ms, 1-wire system

KL1408 | Bus Terminal, 8-channel digital input, 24 V DC, 3 ms, 1-wire connection

Thiết bị đầu cuối đầu vào kỹ thuật số KL1408 thu tín hiệu điều khiển 24 V DC nhị phân từ cấp quy trình và truyền chúng, ở dạng cách ly điện, đến thiết bị tự động hóa cấp cao hơn. Mỗi Bus Terminal chứa tám kênh cho biết trạng thái tín hiệu của chúng bằng các điốt phát sáng.

Các tính năng đặc biệt:

thông số kỹ thuật đầu vào loại 1/3
không bị nảy do công tắc cơ học nhờ bộ lọc đầu vào 3 ms

Technical data	KL1408
Connection technology	1-wire
Specification	EN 61131-2, type 1/3
Number of inputs	8
Nominal voltage	24 V DC (-15 %/+20 %)
“0” signal voltage	-3…+5 V (EN 61131-2, type 1/3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input filter	typ. 3.0 ms
Input current	typ. 3 mA (EN 61131-2, type 3)
Current consumption K-bus	typ. 5 mA
Current consumption power contacts	typ. 2 mA + load
Electrical isolation	500 V (K-bus/field potential)
Bit width in the process image	8 inputs
Configuration	no address or configuration setting
Weight	approx. 55 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, UL, ATEX, IECEx, DNV GL
Ex marking	ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex ec IIC T4 Gc
